- 2022.01.10 유니티 쉐이더 밉맵
- 2022.01.07 유니티 Compute Shader
- 2021.12.29 랜덤 쉐이더
- 2021.08.17 유니티 코드없이 Invisible 사용하기 (마스크 거꾸로 사용)
- 2021.04.17 유니티 쉐이더 기초
- 2021.04.17 유니티 쉐이더 게임 관련
- 2021.03.02 모션블러 종류 1
- 2021.02.21 유니티 쉐이더 인스펙터
https://www.shadertoy.com/view/4djSRW

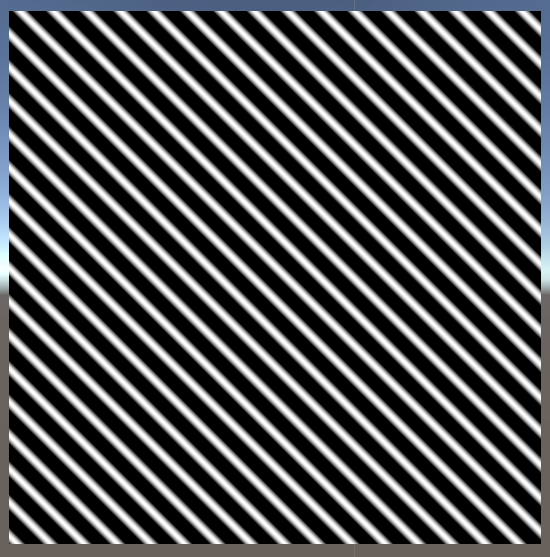

hashOld12의 패턴
float hashOld12(float2 p)
{
return sin(dot(p, float2(100, 100)));
}
hash12의 패턴
float hash12(float2 p)
{
float3 p3 = sin(float3(p.xyx) );
p3 += dot(p3, p3.yzx );
return sin((p3.x + p3.y) * p3.z);
}
편향랜덤이라서 안 쓰는게 좋을듯
noise(floatM|halfM|min10floatM|min16floatM)
'Unity > shader' 카테고리의 다른 글
유니티 Compute Shader (0) | 2022.01.07 |
---|---|
유니티 코드없이 Invisible 사용하기 (마스크 거꾸로 사용) (0) | 2021.08.17 |
유니티 쉐이더 기초 (0) | 2021.04.17 |
마테리얼을 다음처럼 설정하고
0,1,2
6,1,0
InvisibleTarget에 스프라이트를 넣고 Invisible로 지우면 된다
Invisible이 먼저 와야한다
Stencil ID는 서로 동일해야한다
스텐실
'Unity > shader' 카테고리의 다른 글
랜덤 쉐이더 (0) | 2021.12.29 |
---|---|
유니티 쉐이더 기초 (0) | 2021.04.17 |
유니티 쉐이더 게임 관련 (0) | 2021.04.17 |
유니티 셰이더는 HLSL임
실수형
float
-고정밀
-32비트
half
-중정밀
-16비트
-범위 : -60,000 ~ +60,000
-정밀도 : 십진숫자 약 3개
fixed
-저정밀
-11비트
-범위 : -2.0 ~ +2.0
-정밀도 : 1/256
정수형
int
fixed4 타입 선언
fixed4 col = fixed4(0,0,0,0);
전부 잘 작동
for
break
switch
continue
Fixed Function Shader 샘플
Shader "Ahzkwid/UnlitCullFont" {
Properties {
_MainTex ("MainTex", 2D) = "white" {}
_Color ("Main Color", Color) = (1,1,1,0)
_Stencil_Ref ("Stencil_Ref", int) = 1
}
SubShader {
Tags {
"RenderType"="Opaque"
"Queue"="Geometry+3000"
}
Cull front
//ZTest Always
Pass{
blend srcalpha oneminussrcalpha
SetTexture [_MainTex]
{
ConstantColor [_Color]
//Combine texture
//Combine texture lerp(texture) constant
//Combine texture* primary DOUBLE, texture* constant
Combine texture* primary
Combine previous* constant
}
}
}
}
'Unity > shader' 카테고리의 다른 글
유니티 코드없이 Invisible 사용하기 (마스크 거꾸로 사용) (0) | 2021.08.17 |
---|---|
유니티 쉐이더 게임 관련 (0) | 2021.04.17 |
모션블러 종류 (1) | 2021.03.02 |
#define _BoardSize 8.0
int2 GetPiecePos(float2 _pos)
{
return int2(min(_BoardSize-1, _pos.x * _BoardSize), min(_BoardSize-1, _pos.y * _BoardSize));
}
fixed2 GetUvPos(int2 _pos)
{
return fixed2((half)_pos.x / _BoardSize + (0.5 / _BoardSize), (half)_pos.y / _BoardSize + (0.5 / _BoardSize));
}
int2 piecePos = GetPiecePos(i.uv);
fixed2 uvPos = GetUvPos(piecePos);
col.r = uvPos.x * 0.1;
col.g = uvPos.y * 0.1;
col.a = 1;
return col;
결과
#define _BoardSize 8.0
int2 GetPiecePos(float2 _pos)
{
return int2(min(_BoardSize-1, _pos.x * _BoardSize), min(_BoardSize-1, _pos.y * _BoardSize));
}
int2 LenPos(int len, int angle)
{
int2 _pos = int2(0, 0);
switch (angle)
{
case 0:
_pos.x = len;
_pos.y = 0;
break;
case 45:
_pos.x = len;
_pos.y = len;
break;
case 90:
_pos.x = 0;
_pos.y = len;
break;
case 135:
_pos.x = -len;
_pos.y = len;
break;
case 180:
_pos.x = -len;
_pos.y = 0;
break;
case 225:
_pos.x = -len;
_pos.y = -len;
break;
case 270:
_pos.x = 0;
_pos.y = -len;
break;
case 315:
_pos.x = len;
_pos.y = -len;
break;
}
return _pos;
}
int2 piecePos = GetPiecePos(i.uv);
int angle = piecePos.y * 45;
col.r = 0.5+(float2)LenPos(piecePos.x, angle).x * 0.05;
col.g = 0.5 + (float2)LenPos(piecePos.x, angle).y * 0.05;
col.b = 0.5;
col.a = 1;
return col;
결과
아름다운 무지개가 나왔다
Hue가 어째서 360도의 각도를 지니는지 알수있는 부분
int2 LenPos(int len, int angle)
{
int2 _pos = int2(0, 0);
if (angle == 0)
{
_pos.x = len;
_pos.y = 0;
}
else if (angle == 45)
{
_pos.x = len;
_pos.y = len;
}
else if (angle == 90)
{
_pos.x = 0;
_pos.y = len;
}
else if (angle == 135)
{
_pos.x = -len;
_pos.y = len;
}
else if (angle == 180)
{
_pos.x = -len;
_pos.y = 0;
}
else if (angle == 225)
{
_pos.x = -len;
_pos.y = -len;
}
else if (angle == 270)
{
_pos.x = 0;
_pos.y = -len;
}
else if (angle == 315)
{
_pos.x = len;
_pos.y = -len;
}
return _pos;
}
if버전
'Unity > shader' 카테고리의 다른 글
유니티 쉐이더 기초 (0) | 2021.04.17 |
---|---|
모션블러 종류 (1) | 2021.03.02 |
유니티 쉐이더 인스펙터 (0) | 2021.02.21 |
1.이전화면 프레임을 남기는 방식
=초당프레임을 충분히 올리지 않으면 잔상현상이 생김
따라서 처리량대비 성능이 안 좋음
2. 화면내에서의 각속도와 이동속도를 가져와서 쉐이더에서 블러처리를 적용
=위화감이 생기지만 1번에 비해 가벼움
3.이전 프레임과 비교하여 변형된 부분에 블러를 적용
=가볍고 빠르지만 현실적이진 않고 눈속임정도
'Unity > shader' 카테고리의 다른 글
유니티 쉐이더 게임 관련 (0) | 2021.04.17 |
---|---|
유니티 쉐이더 인스펙터 (0) | 2021.02.21 |
스텐실 (0) | 2021.01.20 |
using UnityEngine;
using UnityEditor;
public class AhzkwidToonInspector : ShaderGUI
{
public enum _RM
{
Opaque, Cutout, Transparent
}
public enum _BM
{
None, ext, Body, Hair, Cloth
}
public enum _CM
{
Back, None, Front
}
public override void OnGUI(MaterialEditor materialEditor, MaterialProperty[] properties)
{
MaterialProperty _RenderMode
, _BlendMode
, _MainTex
, _ColorTex
, _Color
, _EmissionTex
, _EmissionColor
, _Hue
, _Sat
, _Val
, _Contrast
, _outline_width
, _OutlineTex
, _OutlineMask
, _OutlineColor
, _Metallic
, _ColorRamp
, _CullingMode
, _OutlineSat;
_RenderMode = FindProperty("_RenderMode", properties);
_BlendMode = FindProperty("_BlendMode", properties);
_MainTex = FindProperty("_MainTex", properties);
_ColorTex = FindProperty("_ColorTex", properties);
_Color = FindProperty("_Color", properties);
_EmissionTex = FindProperty("_EmissionTex", properties);
_EmissionColor = FindProperty("_EmissionColor", properties);
_Hue = FindProperty("_Hue", properties);
_Sat = FindProperty("_Sat", properties);
_Val = FindProperty("_Val", properties);
_Contrast = FindProperty("_Contrast", properties);
_outline_width = FindProperty("_outline_width", properties);
_OutlineTex = FindProperty("_OutlineTex", properties);
_OutlineMask = FindProperty("_OutlineMask", properties);
_OutlineColor = FindProperty("_OutlineColor", properties);
_Metallic = FindProperty("_Metallic", properties);
_ColorRamp = FindProperty("_ColorRamp", properties);
_CullingMode = FindProperty("_CullingMode", properties);
_OutlineSat = FindProperty("_OutlineSat", properties);
// render the default gui
Material targetMat = materialEditor.target as Material;
// see if redify is set, and show a checkbox
EditorGUI.BeginChangeCheck();
{
EditorGUIUtility.labelWidth = 0f;//컬러위치
targetMat.SetInt("_SrcBlend", (int)UnityEngine.Rendering.BlendMode.One);
targetMat.SetInt("_DstBlend", (int)UnityEngine.Rendering.BlendMode.OneMinusSrcAlpha);
//targetMat.SetInt("_DstBlend", (int)UnityEngine.Rendering.BlendMode.Zero);
materialEditor.ShaderProperty(_RenderMode, new GUIContent("Render Mode"));
//materialEditor.ShaderProperty(_BlendMode, new GUIContent("Blend Mode", "Blend Mode"));
GUILayout.Label("Main Maps", EditorStyles.boldLabel);
materialEditor.TexturePropertySingleLine(new GUIContent("Main Texture", "Blend Color Texture"), _MainTex, _BlendMode);
EditorGUI.indentLevel = 1; //얼마나 오른쪽으로 이동시킬지
switch ((_BM)_BlendMode.floatValue)
{
case _BM.None:
break;
case _BM.ext:
materialEditor.TexturePropertySingleLine(new GUIContent("Blend Color", "Blend Color Texture"), _ColorTex, _Color);
materialEditor.TexturePropertySingleLine(new GUIContent("Emission Color", "Emission Color Texture"), _EmissionTex, _EmissionColor);
break;
case _BM.Body:
break;
case _BM.Hair:
break;
case _BM.Cloth:
break;
default:
break;
}
switch ((_BM)_BlendMode.floatValue)
{
case _BM.None:
break;
default:
materialEditor.ShaderProperty(_Hue, new GUIContent("Hue"));
materialEditor.ShaderProperty(_Sat, new GUIContent("Sat"));
materialEditor.ShaderProperty(_Val, new GUIContent("Val"));
break;
}
switch ((_BM)_BlendMode.floatValue)
{
case _BM.None:
break;
case _BM.ext:
materialEditor.ShaderProperty(_Contrast, new GUIContent("Contrast"));
materialEditor.ShaderProperty(_Metallic, new GUIContent("Metallic"));
materialEditor.ShaderProperty(_ColorRamp, new GUIContent("ColorRamp"));
break;
case _BM.Body:
break;
case _BM.Hair:
break;
case _BM.Cloth:
break;
default:
break;
}
EditorGUI.indentLevel = 0;
EditorGUILayout.Space();
GUILayout.Label("Outline", EditorStyles.boldLabel);
materialEditor.ShaderProperty(_outline_width, new GUIContent("Outline Width"));
if(_outline_width.floatValue>0)
{
EditorGUI.indentLevel = 1; //얼마나 오른쪽으로 이동시킬지
//materialEditor.TexturePropertySingleLine(new GUIContent("Outline Color", "Outline Color Texture"), _OutlineTex, _OutlineColor);
//materialEditor.TexturePropertySingleLine(new GUIContent("Outline Color", "Outline Color Texture"), _OutlineColor);
materialEditor.TexturePropertySingleLine(new GUIContent("Outline Mask", "Outline Mask Texture"), _OutlineMask);
materialEditor.ShaderProperty(_OutlineSat, new GUIContent("Outline Sat"));
EditorGUI.indentLevel = 0; //얼마나 오른쪽으로 이동시킬지
}
switch ((_BM)_BlendMode.floatValue)
{
case _BM.None:
break;
case _BM.ext:
break;
case _BM.Body:
break;
case _BM.Hair:
break;
case _BM.Cloth:
break;
default:
break;
}
switch ((_RM)_RenderMode.floatValue)
{
case _RM.Opaque:
break;
case _RM.Cutout:
break;
case _RM.Transparent:
break;
default:
break;
}
materialEditor.ShaderProperty(_CullingMode,new GUIContent("Culling Mode", "Outline Mask Texture"));
switch ((_CM)_CullingMode.floatValue)
{
case _CM.Back:
break;
case _CM.None:
break;
case _CM.Front:
break;
default:
break;
}
EditorGUILayout.Space();
//materialEditor.RenderQueueField();
//materialEditor.EnableInstancingField();
//materialEditor.DoubleSidedGIField();
//base.OnGUI(materialEditor, properties);
}
}
}
AhzkwidToonShader에 포함된 예제
public enum _RM
{
Default, Overlay
}
public override void OnGUI(MaterialEditor materialEditor, MaterialProperty[] properties)
{
//쉐이더 프로퍼티들을 불러옴
MaterialProperty _RenderMode = FindProperty(nameof(_RenderMode), properties);
MaterialProperty _MainTex = FindProperty(nameof(_MainTex), properties);
//인스펙터 변경사항이 있는지 체크하는거, 필수는 아님
EditorGUI.BeginChangeCheck();
{
//해당 변수의 값을 읽어옴
switch ((_RM)_RenderMode.floatValue)
{
case _RM.Default:
//행동1
break;
case _RM.Overlay:
//행동2
break;
default:
break;
}
//일반 인스펙터 (참조변수가 앞에 있는게 특징이다)
materialEditor.ShaderProperty(_RenderRange, "Render Range");
//텍스처 인스펙터 (GuIContent를 써서 설명도 같이 넣고 있다. 그냥 문자열로 넣어도 됨)
materialEditor.TexturePropertySingleLine(new GUIContent("Main Texture", "Default Texture"), _MainTex);
}
}
들여쓰기
EditorGUI.indentLevel = 1; //얼마나 오른쪽으로 이동시킬지
{
var guiContent=new GUIContent("Main Texture(변수명)", "Default Texture(설명)");
materialEditor.TexturePropertySingleLine(guiContent, _MainTex);
}
EditorGUI.indentLevel = 0; //얼마나 오른쪽으로 이동시킬지
헤더+들여쓰기
//헤더
GUILayout.Label("헤더", EditorStyles.boldLabel);
{
//들여쓰기
EditorGUI.indentLevel = 1; //얼마나 오른쪽으로 이동시킬지
{
materialEditor.ShaderProperty(_Value1, "인스펙터1");
materialEditor.ShaderProperty(_Value2, "인스펙터2");
materialEditor.ShaderProperty(_Value3, "인스펙터3");
materialEditor.ShaderProperty(_Value4, "인스펙터4");
}
EditorGUI.indentLevel = 0;
}
렌더큐옵션
EditorGUILayout.Space();
EditorGUILayout.Space();
materialEditor.RenderQueueField();
어스밴스 옵션
EditorGUILayout.Space();
EditorGUILayout.Space();
GUILayout.Label("Advanced Oprions", EditorStyles.boldLabel);
{
materialEditor.EnableInstancingField();
materialEditor.DoubleSidedGIField();
}
쉐이더 코드에 다음과같이 넣어줘야 작동한다
FallBack은 필수는 아니고 쉐이더 미싱일때 작동하는거
SubShader
{
FallBack "Diffuse" //기본마테리얼
CustomEditor "AhzkwidToonInspector" //커스텀인스펙터
}
